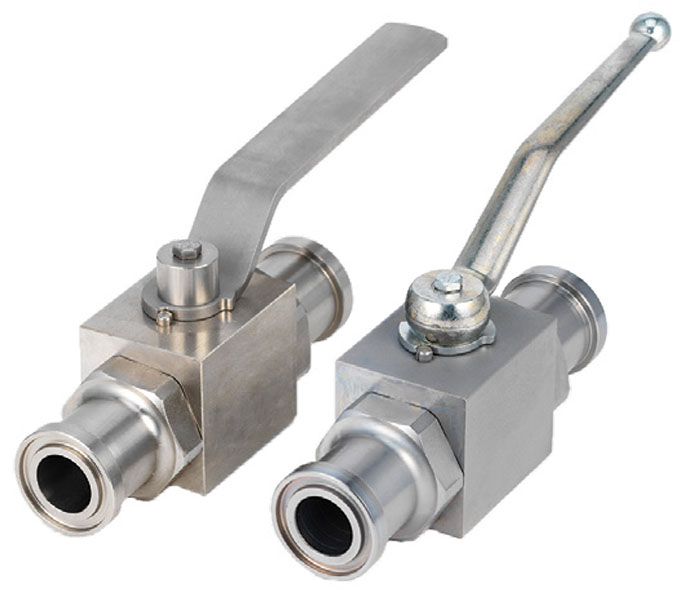

• AES Series Two-Way Block Body Flange Head Ball Valves
  • AES Series Two-Way Block Body Flange Head Ball Valves - 2
  • O-ring groove both ends.
  • Carbon steel with zinc nickel plating.
  • 316 stainless steel available from stock.
  • POM seats and Buna O-rings standard on carbon steel valves (-11DB).
  • POM seats and Fluorocarbon (FKM) O-rings standard on stainless steel valves (-22DV).
  • Handle shown in Handle Code field supplied standard.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Nominal Size (DN)

Flange Size

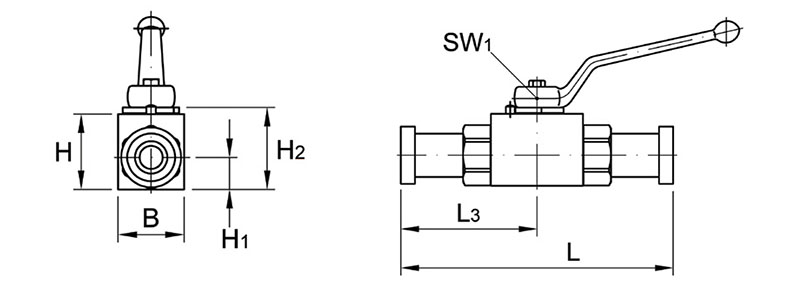

Dimension L

Dimension L3

Add To Cart/Request Quote
N/A AES3 Series 13 Millimeter (mm) Nominal Size (DN) Two-Way Block Body Flange Head Ball Valve N/A 13 mm N/A 1/2 in N/A 5.94 in N/A 2.97 in Request Quote
N/A AES3 Series 19 Millimeter (mm) Nominal Size (DN) Two-Way Block Body Flange Head Ball Valve N/A 19 mm N/A 3/4 in N/A 6.38 in N/A 3.19 in Request Quote
N/A AES3 Series 25 Millimeter (mm) Nominal Size (DN) Two-Way Block Body Flange Head Ball Valve N/A 25 mm N/A 1 in N/A 7.01 in N/A 3.50 in Request Quote
N/A AES6 Series 13 Millimeter (mm) Nominal Size (DN) Two-Way Block Body Flange Head Ball Valve N/A 13 mm N/A 1/2 in N/A 5.94 in N/A 2.97 in Request Quote
N/A AES6 Series 19 Millimeter (mm) Nominal Size (DN) Two-Way Block Body Flange Head Ball Valve N/A 19 mm N/A 3/4 in N/A 6.85 in N/A 3.43 in Request Quote
N/A AES6 Series 25 Millimeter (mm) Nominal Size (DN) Two-Way Block Body Flange Head Ball Valve N/A 25 mm N/A 1 in N/A 7.80 in N/A 3.90 in Request Quote
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
