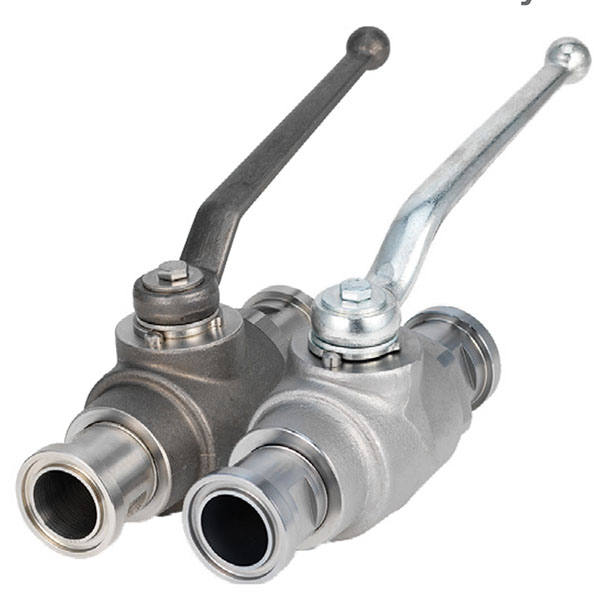

• ABS Series Two-Way Forged Body Flange Head Ball Valves
  • ABS Series Two-Way Forged Body Flange Head Ball Valves - 2
  • O-ring groove both ends.
  • Carbon steel with zinc nickel plating.
  • Duplex/316 stainless steel available from stock.
  • POM seats and Buna O-rings standard on carbon steel valves (-11DB).
  • POM seats and Fluorocarbon (FKM) O-rings standard on stainless steel valves (-22DV).
  • Handle shown in Handle Code field supplied standard.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Nominal Size (DN)

Flange Size

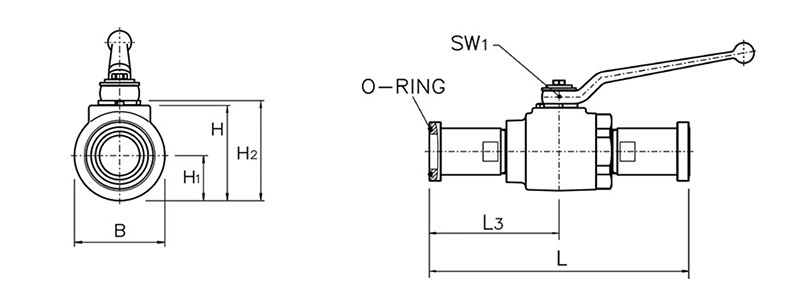

Dimension L

Dimension L3

Add To Cart/Request Quote
N/A ABS3 Series 32 Millimeter (mm) Nominal Size (DN) Two-Way Forged Body Flange Head Ball Valve N/A 32 mm N/A 1-1/4 in N/A 7.52 in N/A 3.90 in Request Quote
N/A ABS3 Series 38 Millimeter (mm) Nominal Size (DN) Two-Way Forged Body Flange Head Ball Valve N/A 38 mm N/A 1-1/2 in N/A 9.09 in N/A 4.55 in Request Quote
N/A ABS3 Series 51 Millimeter (mm) Nominal Size (DN) Two-Way Forged Body Flange Head Ball Valve N/A 51 mm N/A 2 in N/A 9.13 in N/A 4.57 in Request Quote
N/A ABS6 Series 32 Millimeter (mm) Nominal Size (DN) Two-Way Forged Body Flange Head Ball Valve N/A 32 mm N/A 1-1/4 in N/A 8.78 in N/A 4.53 in Request Quote
N/A ABS6 Series 38 Millimeter (mm) Nominal Size (DN) Two-Way Forged Body Flange Head Ball Valve N/A 38 mm N/A 1-1/2 in N/A 11.06 in N/A 5.53 in Request Quote
N/A ABS6 Series 51 Millimeter (mm) Nominal Size (DN) Two-Way Forged Body Flange Head Ball Valve N/A 51 mm N/A 2 in N/A 12.44 in N/A 6.24 in Request Quote
